A+++ Efficiency at 35°C & 55°C

To adapt to local climate conditions, the compressor of the Ultra-Silent Series is precisely optimized. Combined with:

• High-efficiency DC inverter fan

• Fin-and-tube heat exchanger with optimized refrigerant flow paths

• CFD-designed air duct system

the Ultra-Silent Series achieves ErP A+++ energy efficiency at both 35°C and 55°C, based on EN 14825 / EN 14511, representing a leading performance level in the heat pump industry.

With a SCOP exceeding 5.1 (A7/W35), the system maintains high efficiency throughout the entire heating season.

In 2025, the Ultra-Silent Series was successfully certified by AIT (Austrian Institute of Technology), a national-level laboratory, further reinforcing performance credibility and market confidence.

High Performance in Extreme Conditions

The Ultra-Silent Series delivers stable heating performance even at –25°C ambient temperature, ensuring reliable comfort in cold-climate regions.

• Maximum water outlet temperature: up to 75°C

• Suitable for both new installations and renovation projects

• Designed with a strong focus on efficiency, durability, and long-term reliability

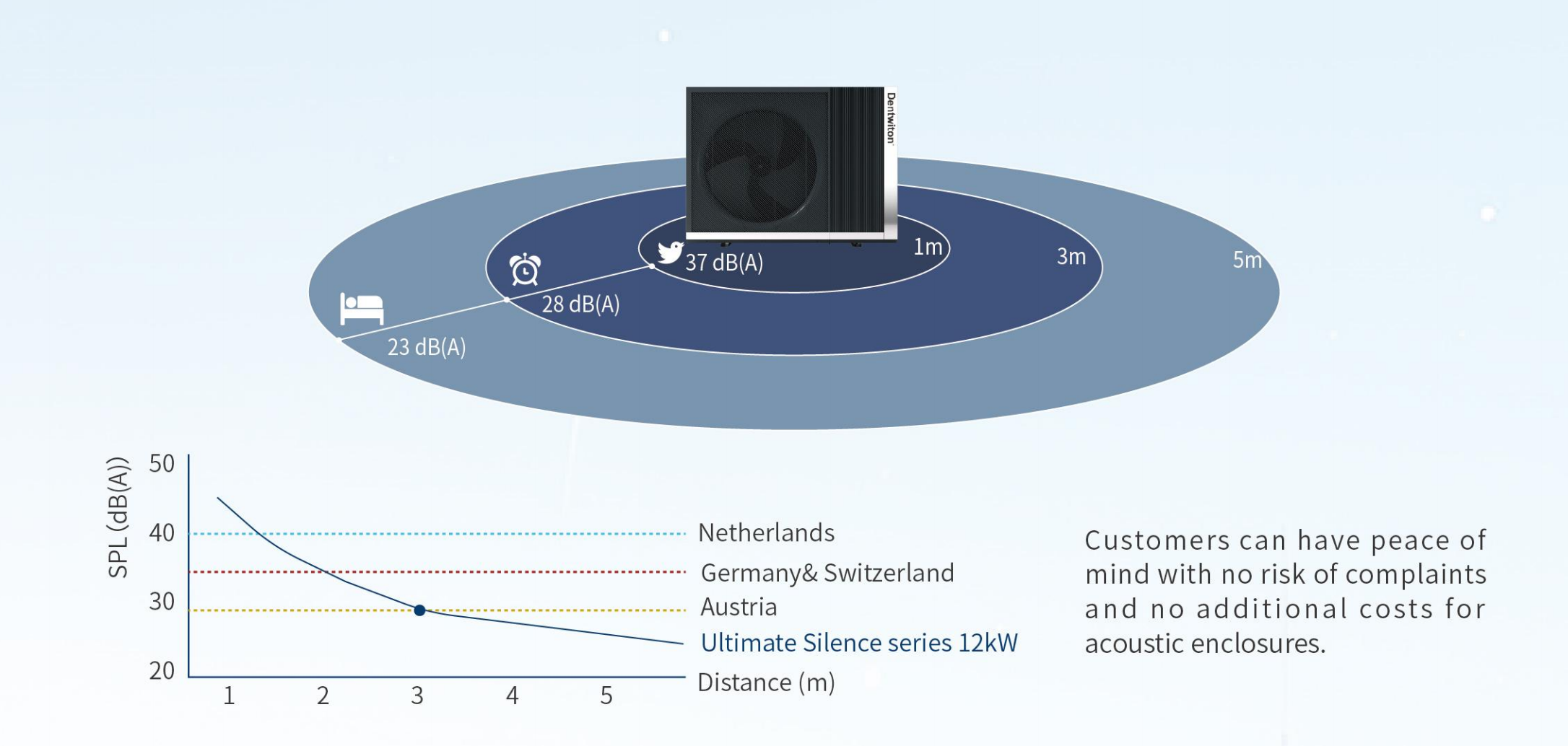

• Core Noise Reduction Technology

• Despite its strong performance, the Ultra-Silent Series achieves ultra-low operating noise levels, reaching as low as 35 dB(A) under optimized conditions.

• Advanced acoustic design, vibration isolation, and airflow optimization ensure quiet and unobtrusive operation, making it ideal for residential environments.

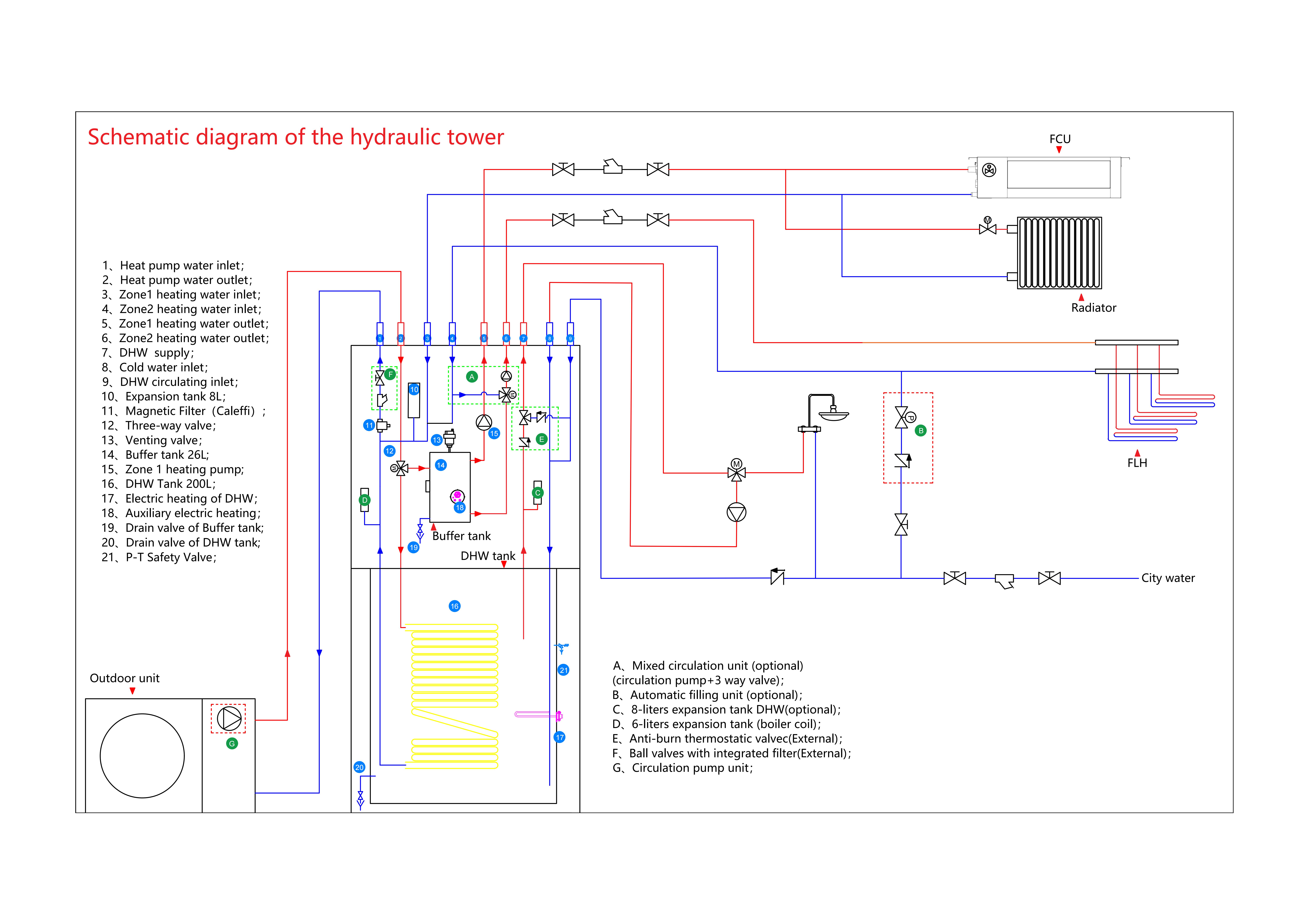

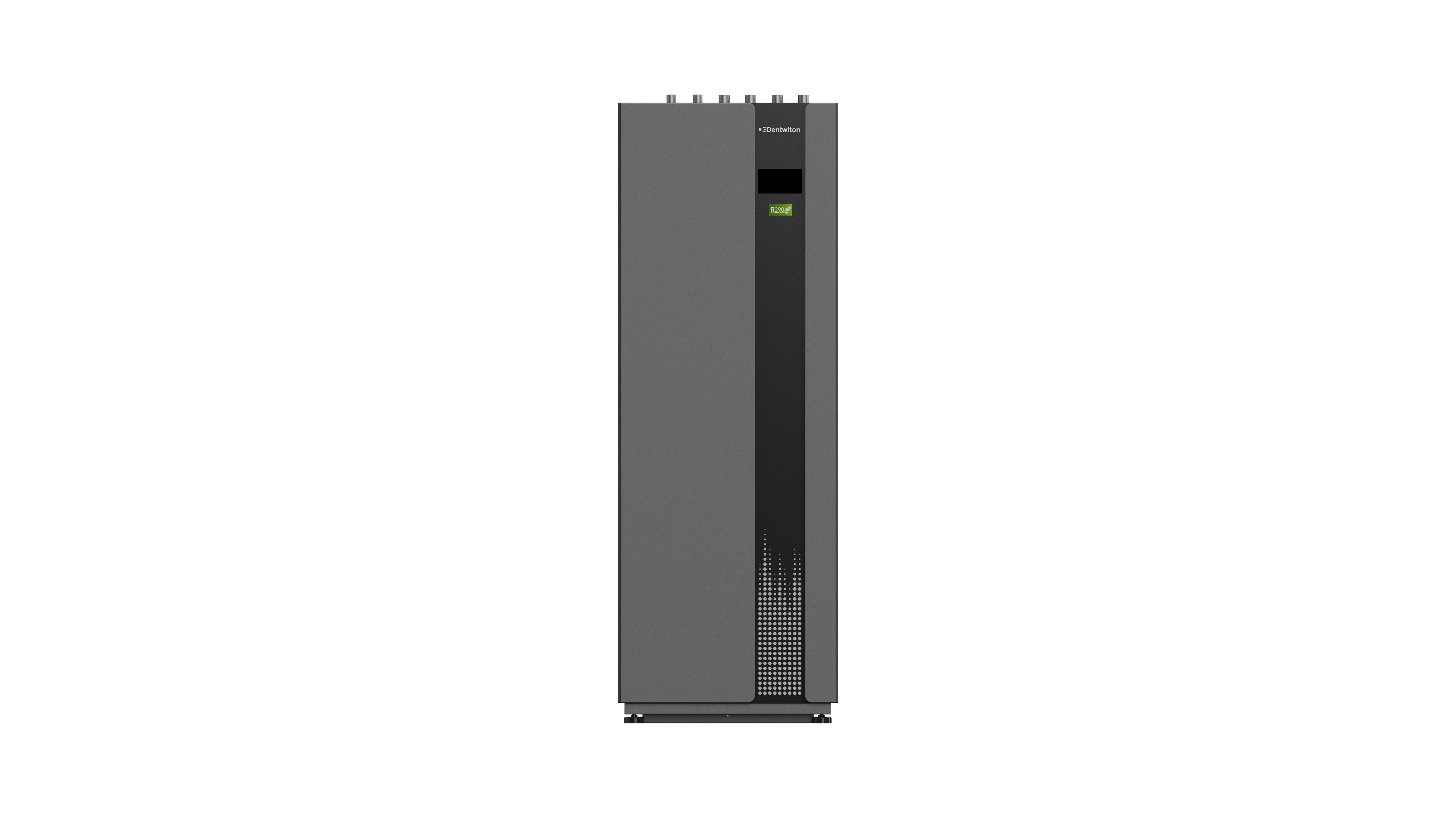

Fully Integrated Hot Water Center

When installed with Dentwiton’s fully integrated hydraulic hot water center, the system requires no additional hydraulic components on site.

• End-to-end direct connection

• Integrated multi-zone heating support

• Built-in domestic hot water circulation function

• Significantly reduced installation time and complexity

This solution transforms complex on-site installation into a factory-defined, standardized system.

Simple & Intuitive Operation

The touch-screen control interface is designed with simplicity in mind:

• All functions accessible within two menu levels

• Visual simulation of refrigerant and heating water circuits

• Daily operation data and system status easily accessible

This approach reduces learning time while maintaining full system transparency.

Elegant Design with Practical Advantages

The Ultra-Silent Series features a full metal enclosure, enhancing structural durability and long-term resistance to outdoor conditions.

Internally, carefully engineered component layout and system architecture provide a solid foundation for stable, efficient, and reliable operation, while ensuring ease of maintenance.

Flexible Hydraulic Interface Options

Hydraulic connection directions can be configured according to site conditions, offering greater flexibility during installation and reducing on-site adjustment work.

Advanced Control & Smart Functions

The upgraded 7-inch high-definition touch screen delivers a smooth and modern user experience, supporting both landscape and portrait orientation.

Key functions include:

• Dual heating/cooling curves (local platform & mobile APP)

• DHW storage management with anti-legionella function

• Real-time monitoring of power consumption, output, and COP

• SG-Ready function for smart grid interaction

• Intelligent defrost logic based on ambient and coil temperature

• Cascade control: up to 10 units managed from one panel

• Eco electric heater control with staged operation

• Compatibility with various external master control systems

Remote Service & Cloud Connectivity

Dentwiton’s smart cloud platform enables remote monitoring, control, and diagnostics of the heat pump system via computer, tablet, or smartphone.

Key Capabilities

• Real-time monitoring & control

• Energy efficiency optimization

• Remote diagnostics & qualified service support

• User-friendly multi-device access
